Jerky pilot controls are typically caused by very light factory resistance combined with the high hydraulic pressure-to-weight ratio inherent in some smaller machines. When minimal force is required to move the joystick, small hand movements can produce larger-than-expected hydraulic responses.

Adding engineered resistance through a retrofit upgrade refines the input force profile, improving predictability and allowing smoother feathering during trenching, grading, and precision work.

Loose-feeling controls are typically the result of light OEM resistance components inside the pilot hydraulic valves that the joysticks actuate. Compact machines are often tuned for light-touch operation, which can reduce operator feedback.

A properly engineered retrofit resistance system increases tactile feedback while preserving full joystick stroke integrity.

No. This is a mechanical external retrofit that modifies joystick resistance without altering hydraulic pressure, relief settings, pump output, or valve calibration.

The hydraulic system remains unchanged — only the operator input force curve is refined.

Pilot assemblies operate within tight internal clearances and defined movement envelopes. Springs that are cut from longer stock or not specifically designed for compact pilot cavities may allow exposed ends to approach internal components during full joystick travel.

Purpose-engineered retrofit components are configured with internal alignment and clearance control in mind to help prevent unwanted contact throughout the full stroke range.

Pilot control assemblies operate within tight internal clearances and defined stroke limits. Generic or hardware-store springs are not designed for those constraints and may not provide a balanced resistance curve across the full range of joystick travel.

A purpose-engineered retrofit accounts for fit, movement envelope, and controlled force progression — not just increased stiffness.

Yes, purpose-engineered resistance kits will fit all known, compatible hydraulic pilot control systems. All pilot control mod springs are not created equal. Purpose-engineered kits will account for pilot valve and joystick cavity dimensions and piston travel/stroke lengths.

Resistance components must be matched to the available movement envelope of the joystick control. Generic springs may not account for stroke compatibility and/or clearance requirements.

If the joystick requires very little input force, hydraulic signal changes can occur quickly with minimal hand movement. This often makes fine control difficult, especially at higher RPM or during detailed work.

Increasing engineered resistance helps smooth the initial engagement phase and improves low-speed modulation.

Feathering becomes difficult when joystick resistance is too light relative to the hydraulic response of the machine. With minimal input force required, small hand movements can translate into larger hydraulic changes, making fine modulation more challenging.

Increasing engineered resistance refines the input force curve, allowing more controlled, progressive engagement during grading, trenching, and detailed work.

Resistance must be balanced within the pilot assembly's stroke range. Excessive force or incompatible geometry can limit travel, distort the intended force curve, or increase operator fatigue.

Properly engineered retrofit systems are designed to enhance feel while preserving full piston stroke and delivering consistent movement progression for comfortable all-day operation.

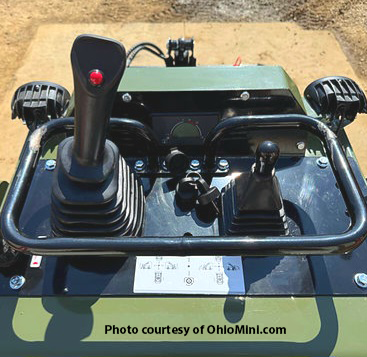

Compatible machines will have pilot control joysticks mounted near the seat armrests. Under the joystick boots are pilot hydraulic valves with piston actuators that the joysticks act against.

Mechanical control systems operate the main control valve directly using linkages connected to the hand control assemblies.

When properly balanced, increased resistance improves control feedback without significantly increasing fatigue. The objective is refined precision and predictable input — not excessive stiffness.

Well-designed retrofit systems provide improved modulation while maintaining natural hand movement over long operating periods.

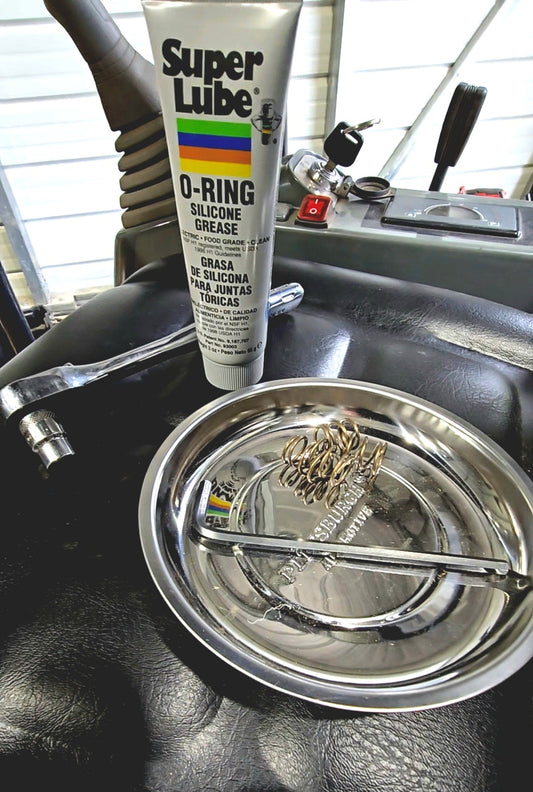

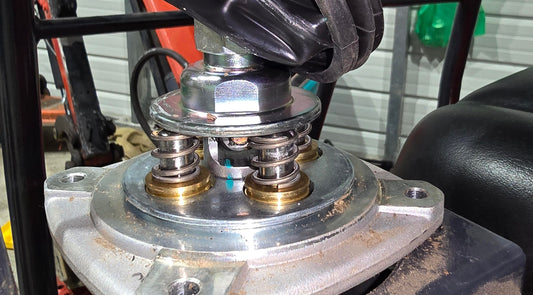

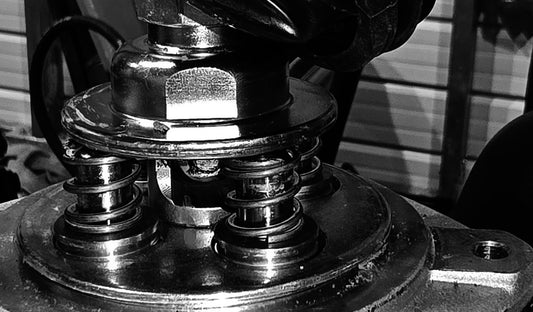

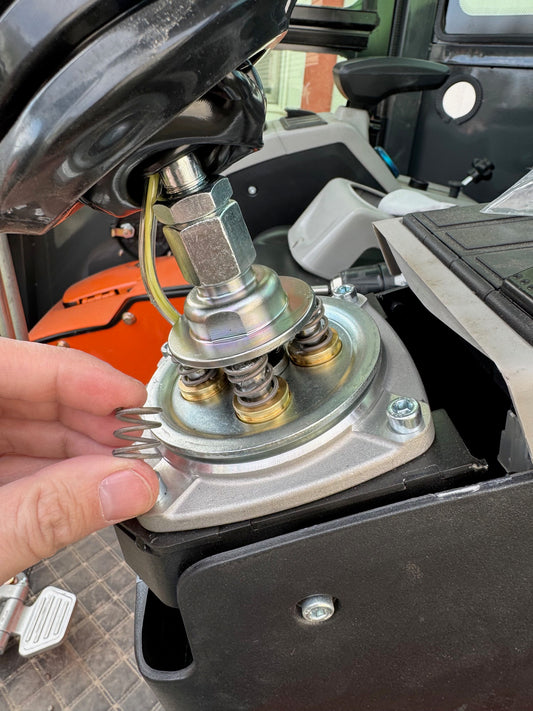

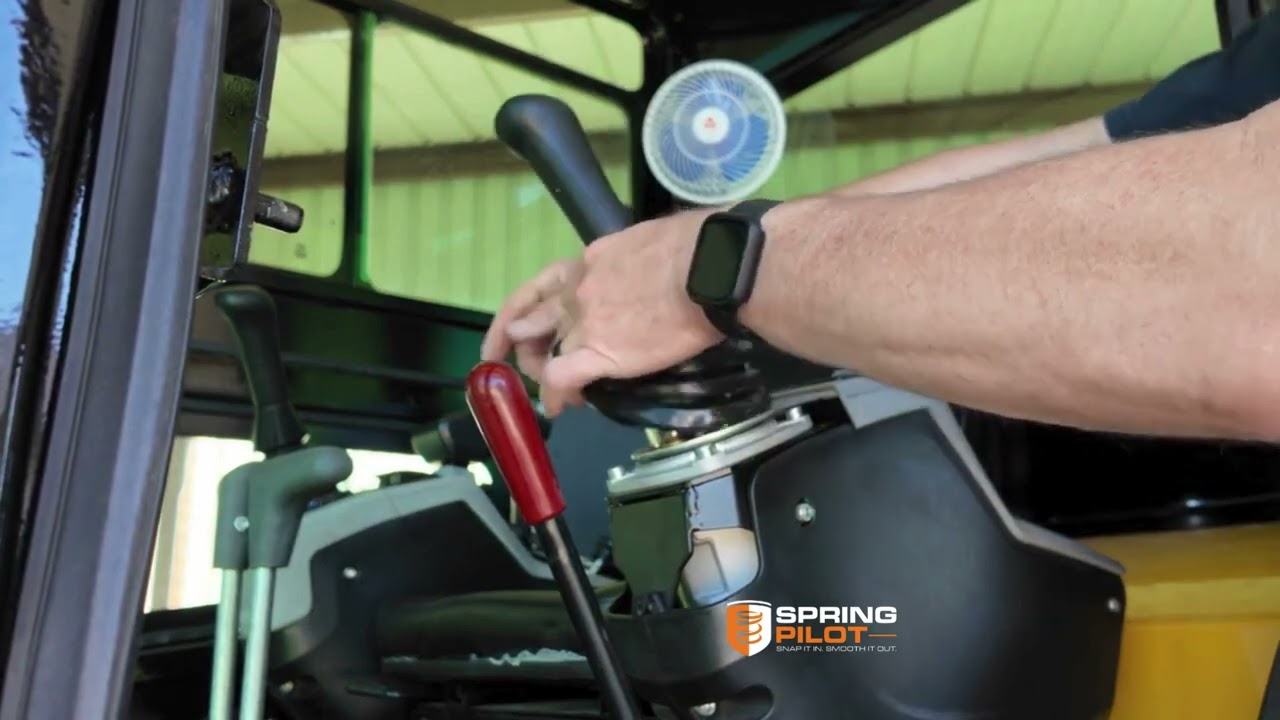

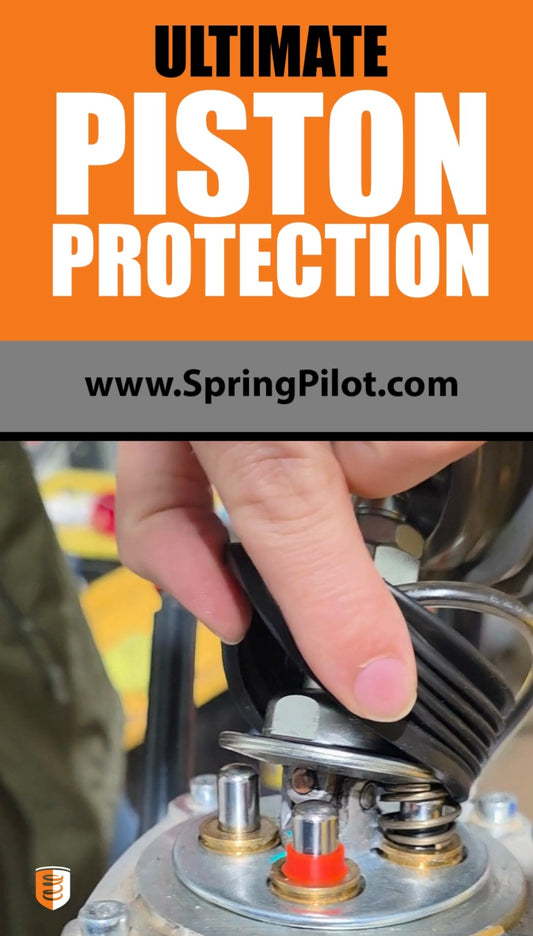

Installation is straightforward and requires no special tools. Access is gained by loosening or lifting the joystick boot to expose the pilot assembly. The retrofit components are installed onto the existing pilot pistons before reassembling the boot.

No hydraulic lines are opened, and the system remains sealed throughout the process.
